I.M.M. Robots

Injection moulding automation

I.M.M. Robots by RUNN ELECTRIC

BRTR09WDS5P0 robot

MODEL 01 / I.M.M. ROBOTS

BRTR09WDS5P0

BRTR09WDS5P0 applies to all types of horizontal injection machine ranges of 160T-320T for take-out products and sprue. The vertical arm is the telescopic stage with the product arm. Five-axis AC servo drive, also suitable for in-mold labeling and in-mold inserting application. After installing the manipulator, the productivity will be increased by 10-30% and will reduce the defective rate of products, ensure the safety of operators, reduce manpower and accurately control the output to reduce waste. Five-axis driver and controller integrated system: fewer signal lines, long-distance communication, good expansion performance, strong anti-interference ability, high accuracy of repeated positioning, can simultaneously control multiple axes, simple equipment maintenance, and low failure rate.

160T-320TRecommended I.M.M (ton)950Vertical Stroke (mm)1500Traverse Stroke (mm)

View model details ↗

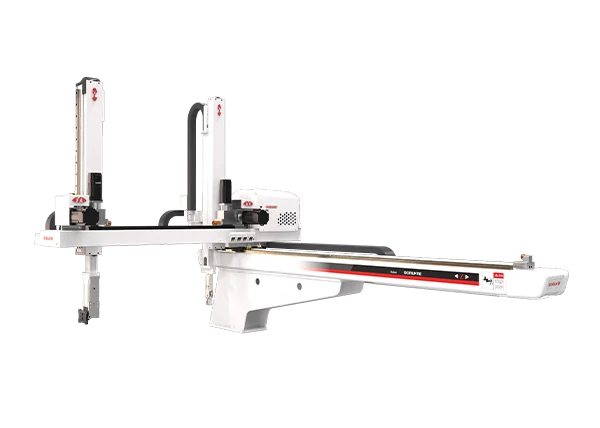

BRTR11WDS5PC robot

MODEL 02 / I.M.M. ROBOTS

BRTR11WDS5PC

BRTR11WDS5PC series is suitable for 320T-470T horizontal injection molding machine to take out the finished product and nozzle, arm form telescopic type, two-arm, five-axis AC servo drive, can be used for quick removal or in-mold sticking, in-mold inserts and other special product applications, accurate positioning, high speed, long life, low failure, installation manipulator can increase production capacity (10-30%), reduce the defective rate of products, ensure the safety of operators, and reduce manual labor. Accurately control production, reduce waste and ensure delivery. The integrated control system of five-axis drive and control: less signal lines, long-distance communication, good expansion performance, strong anti-interference ability, high repetitive positioning accuracy, multi-axis can be controlled at the same time, simple equipment maintenance and low failure rate.

320T-470TRecommended I.M.M (ton)1100Vertical Stroke (mm)1700Traverse Stroke (mm)

View model details ↗

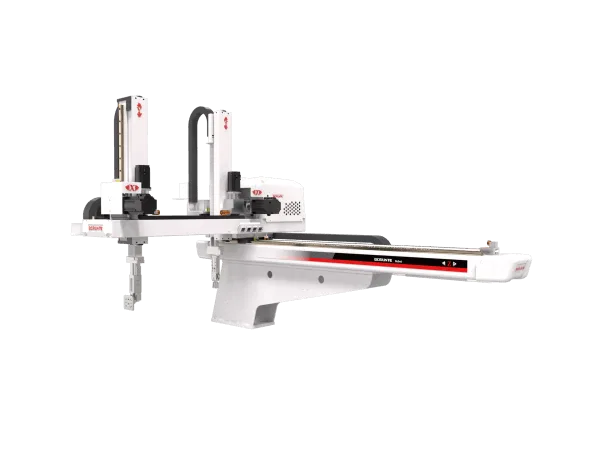

BRTR07WDS5PC robot

MODEL 03 / I.M.M. ROBOTS

BRTR07WDS5PC

BRTR07WDS5PC series is suitable for 50T-200T horizontal injection molding machine to take out the finished product and nozzle, arm form telescopic stage, two-arm, five-axis AC servo drive, can be used for quick removal or in-mold sticking, in-mold inserts and other special product applications. Accurate positioning, high speed, long life, and low failure rate. After installing the manipulator can increase production capacity (10-30%) and will reduce the defective rate of products, ensure the safety of operators, and reduce manpower. Accurately control production, reduce waste and ensure delivery. Five-axis driver and controller integrated system: fewer signal lines, long-distance communication, good expansion performance, strong anti-interference ability, high accuracy of repeated positioning, multi-axis can be controlled at the same time, simple equipment maintenance, and low failure rate.

50T-200TRecommended I.M.M (ton)750Vertical Stroke (mm)1300Traverse Stroke (mm)

View model details ↗

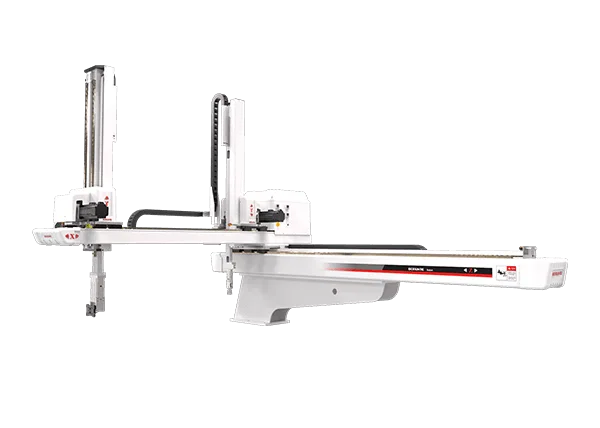

BRTR13WDS5PC robot

MODEL 04 / I.M.M. ROBOTS

BRTR13WDS5PC

BRTR13WDS5PC applies to all types of horizontal injection machine ranges of 360T-700T for take-out products and runner. The vertical arm is the telescopic stage runner arm. Five-axis AC servo drive, also suitable for in-mold labeling and in-mold inserting application. After installing the manipulator, the productivity will be increased by 10-30% and will reduce the defective rate of products, ensure the safety of operators, reduce manpower and accurately control the output to reduce waste. Five-axis driver and controller integrated system: fewer signal lines, long-distance communication, good expansion performance, strong anti-interference ability, high accuracy of repeated positioning, can simultaneously control multiple axes, simple equipment maintenance, and low failure rate.

360T-700TRecommended I.M.M (ton)1380Vertical Stroke (mm)1860Traverse Stroke (mm)

View model details ↗

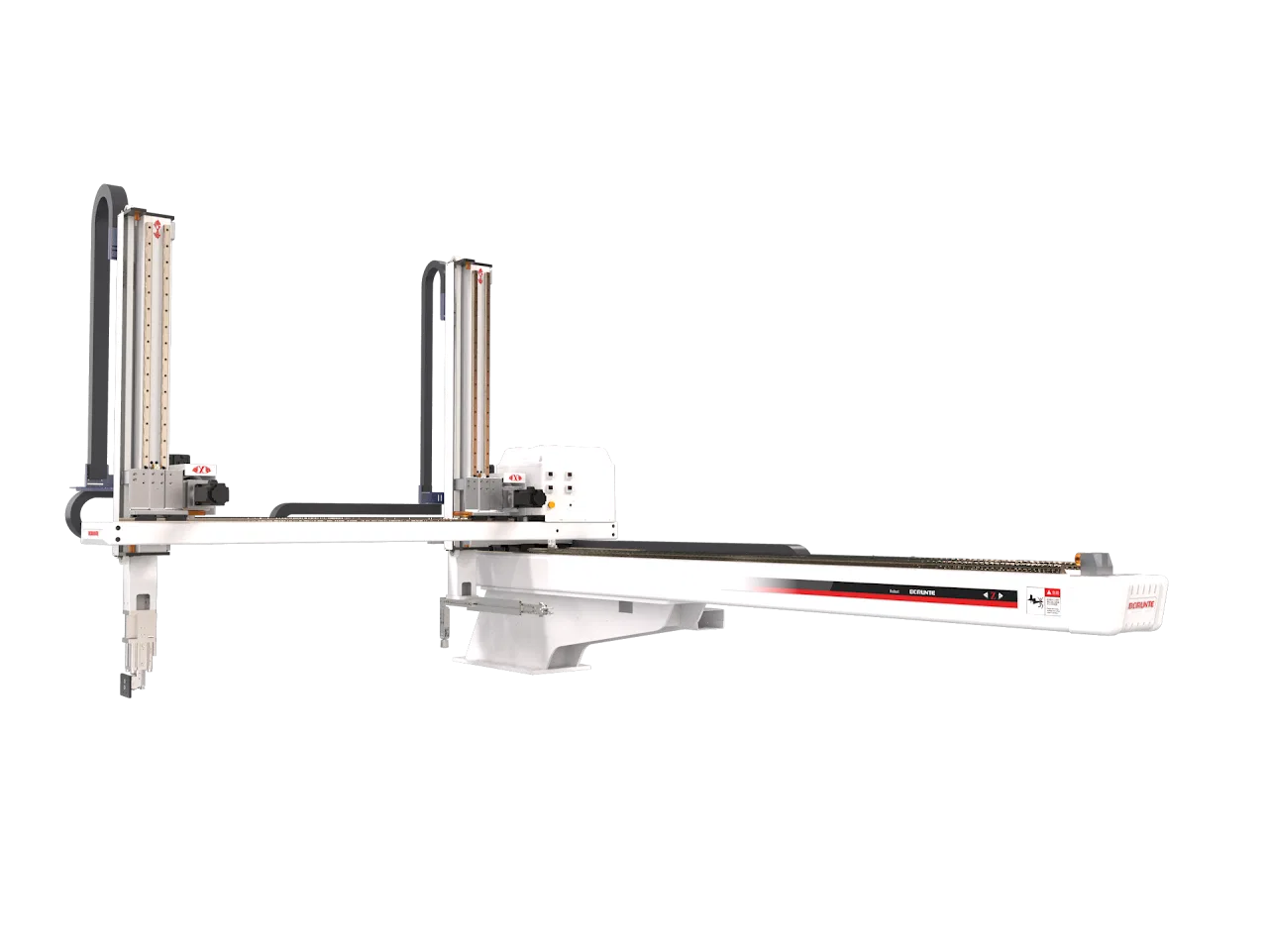

BRTR17WDS5PC robot

MODEL 05 / I.M.M. ROBOTS

BRTR17WDS5PC

BRTR17WDS5PC applies to all types of horizontal injection machine ranges of 750T-1200T for take-out products and runner. The vertical arm is the telescopic stage runner arm. Five-axis AC servo drive, also suitable for in-mold labeling and in-mold inserting application. After installing the manipulator, the productivity will be increased by 10-30% and will reduce the defective rate of products, ensure the safety of operators, reduce manpower and accurately control the output to reduce waste. Five-axis driver and controller integrated system: fewer signal lines, long-distance communication, good expansion performance, strong anti-interference ability, high accuracy of repeated positioning, can simultaneously control multiple axes, simple equipment maintenance, and low failure rate.

750T-1200TRecommended I.M.M (ton)1760Vertical Stroke (mm)2580Traverse Stroke (mm)

View model details ↗

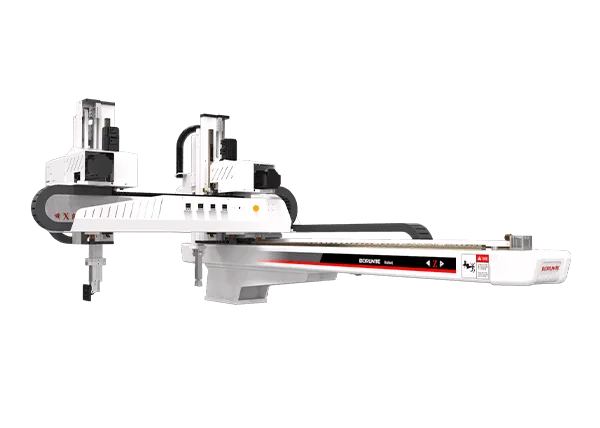

BRTR08TDS5PC robot

MODEL 06 / I.M.M. ROBOTS

BRTR08TDS5PC

BRTR08TDS5PC series is suitable for 50T-230T horizontal injection molding machine to take out the finished product and nozzle, arm form ternary type, two-arm, five-axis AC servo drive, can be used for quick removal or in-mold sticking, in-mold inserts and other special product applications. Accurate positioning, high speed, long life, and low failure rate. After installing the manipulator can increase production capacity (10-30%) and will reduce the defective rate of products, ensure the safety of operators, and reduce manpower. Accurately control production, reduce waste and ensure delivery. Five-axis driver and controller integrated system: fewer signal lines, long-distance communication, good expansion performance, strong anti-interference ability, high accuracy of repeated positioning, multi-axis can be controlled at the same time, simple equipment maintenance, and low failure rate.

50T-230TRecommended I.M.M (ton)810Vertical Stroke (mm)1300Traverse Stroke (mm)

View model details ↗

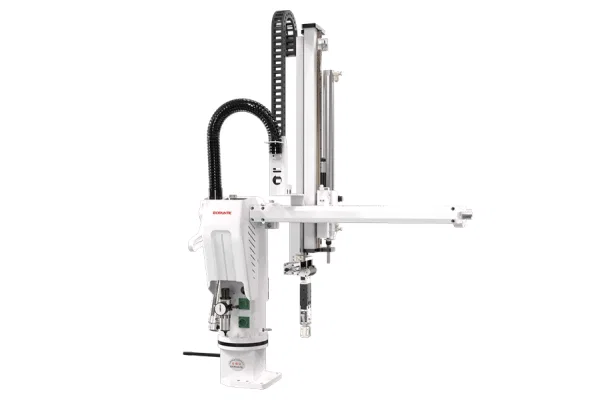

BRTP08WSS0PC robot

MODEL 07 / I.M.M. ROBOTS

BRTP08WSS0PC

BRTP08WSS0PC series applies to all types of horizontal injection machines of 150T-250T for take-out products. The up and down arm is a single/double sectional type. The up and down action, drawing part, screwing out, and screwing in of them is driven by air pressure, with high speed and high efficiency. After installing this robot, productivity will be increased by 10-30% and will reduce the defective rate of products, ensure the safety of operators, reduce manpower and accurately control the output to reduce waste.

150T-250TRecommended I.M.M (ton)850Vertical Stroke (mm)/Traverse Stroke (mm)

View model details ↗

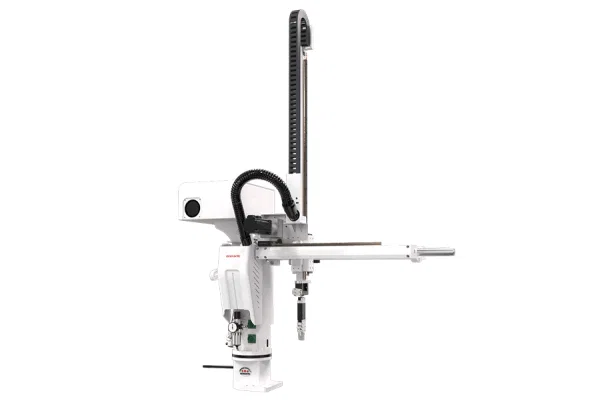

BRTP07ISS1PC robot

MODEL 08 / I.M.M. ROBOTS

BRTP07ISS1PC

BRTP07ISS1PC series applies to all types of horizontal injection machines of 60T-200T for take-out products. The up and down arm is a single sectional type. The up and down action is driven by AC servo motor, with accurate positioning, fast speed, long service life, and low failure rate. The rest parts are driven by air pressure. It is economical and affordable. After installing this robot, productivity will be increased by 10-30% and will reduce the defective rate of products, ensure the safety of operators, reduce manpower and accurately control the output to reduce waste.

60T-200TRecommended I.M.M (ton)750Vertical Stroke (mm)/Traverse Stroke (mm)

View model details ↗

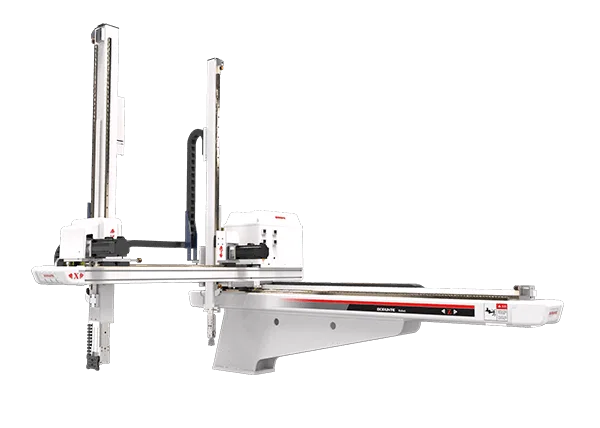

BRTM09IDS5PC robot

MODEL 09 / I.M.M. ROBOTS

BRTM09IDS5PC

BRTM09IDS5PC series is suitable for the finished product extraction of 160T-320T horizontal injection molding machine, single-cut arm type, two arms, five-axis AC servo drive, can be used for quick removal or in-mold sticking, in-mold inserts and other special product applications. Accurate positioning, high speed, long life, low failure rate. Installing the manipulator can increase production capacity by 10-30% and will reduce the defective rate of products, ensure operator safety, and reduce manual labor. Accurately control production, reduce waste and ensure delivery. Five-axis driver and controller integrated system: fewer signal lines, long-distance communication, good expansion performance, strong anti-interference ability, high accuracy of repeated positioning, multi-axis can be controlled at the same time, simple equipment maintenance, and low failure rate.

160T-320TRecommended I.M.M (ton)900Vertical Stroke (mm)1500Traverse Stroke (mm)

View model details ↗

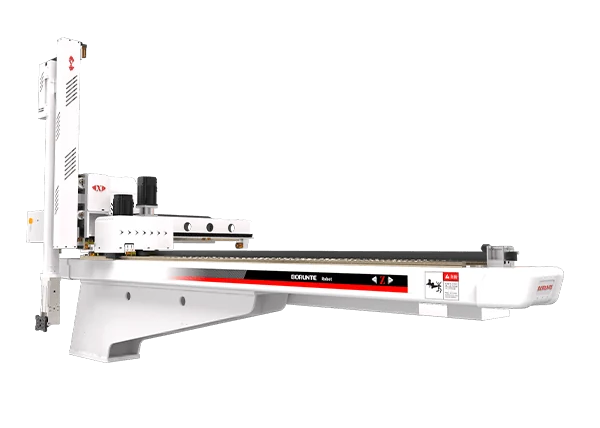

BRTNN11WSS3P robot

MODEL 10 / I.M.M. ROBOTS

BRTNN11WSS3P

BRTNN11WSS3P series apply to all types of horizontal injection machine ranges of 250T-480T for take-out products. The vertical arm is the telescopic type with the product arm. Three-axis AC servo drive saves time than similar models, accurate positioning, and short forming cycle. After installing this robot, the productivity will be increased by 10-30% will reduce the defective rate of products, ensure the safety of operators, reduce manpower and accurately control the output to reduce waste. Three-axis driver and controller integrated system: fewer signal lines, long-distance communication, good expansion performance, strong anti-interference ability, high accuracy of repeated positioning, can simultaneously control multiple axes, simple equipment maintenance, and low failure rate.

250T-480TRecommended I.M.M (ton)1100Vertical Stroke (mm)1700Traverse Stroke (mm)

View model details ↗

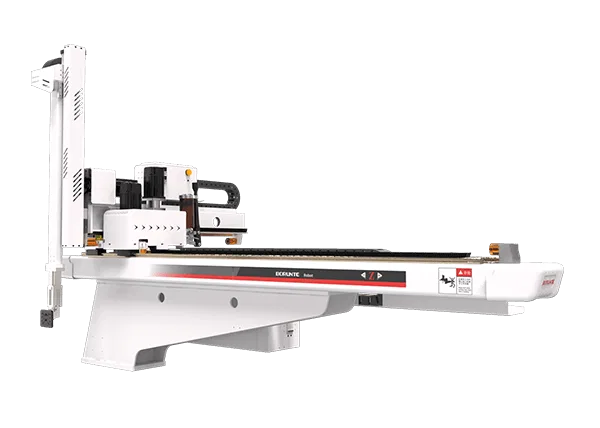

BRTNG09WSS3P robot

MODEL 11 / I.M.M. ROBOTS

BRTNG09WSS3P

BRTNG09WSS3P series apply to all types of horizontal injection machine ranges of 160T-380T for take-out products. The vertical arm is the telescopic type with the product arm. Three-axis AC servo drive saves time than similar models, accurate positioning, and short forming cycle. After installing the manipulator, the productivity will be increased by 10-30% and will reduce the defective rate of products, ensure the safety of operators, reduce manpower and accurately control the output to reduce waste. Three-axis driver and controller integrated system: fewer signal lines, long-distance communication, good expansion performance, strong anti-interference ability, high accuracy of repeated positioning, can simultaneously control multiple axes simple equipment maintenance, and low failure rate.

160T-380TRecommended I.M.M (ton)950Vertical Stroke (mm)1500Traverse Stroke (mm)

View model details ↗

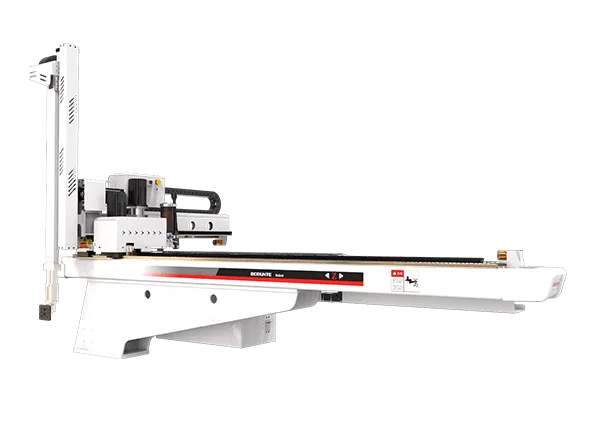

BRTNG11WSS3P robot

MODEL 12 / I.M.M. ROBOTS

BRTNG11WSS3P

BRTNG11WSS3P series apply to all types of horizontal injection machine ranges of 250T-480T for take-out products. The vertical arm is the telescopic type with the product arm. Three-axis AC servo drive saves time than similar models, accurate positioning, and short forming cycle. After installing the manipulator, the productivity will be increased by 10-30% and will reduce the defective rate of products, ensure the safety of operators, reduce manpower and accurately control the output to reduce waste. Three-axis driver and controller integrated system: fewer signal lines, long-distance communication, good expansion performance, strong anti-interference ability, high accuracy of repeated positioning, can simultaneously control multiple axes simple equipment maintenance, and low failure rate.

250T-480TRecommended I.M.M (ton)1150Vertical Stroke (mm)1700Traverse Stroke (mm)

View model details ↗

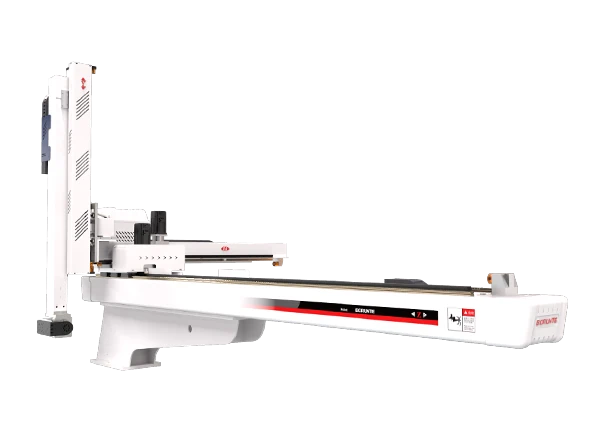

BRTNN15WSS4P robot

MODEL 13 / I.M.M. ROBOTS

BRTNN15WSS4P

BRTNN15WSS4P series applies to all types of horizontal injection machine ranges of 470T-800T for take-out products. The vertical arm is the telescopic type with the product arm. Four-axis AC servo drive, with a C-servo axis on the wrist, the rotation angle of the C-axis:90 ° . Save time than similar models, accurate positioning, and short forming cycle. After installing the manipulator, the productivity will be increased by 10-30% and will reduce the defective rate of products, ensure the safety of operators, reduce manpower and accurately control the output to reduce waste. Four-axis driver and controller integrated system: fewer signal lines, long-distance communication, good expansion performance, strong anti-interference ability, high accuracy of repeated positioning, can simultaneously control multiple axes, simple equipment maintenance, and low failure rate.

470T-800TRecommended I.M.M (ton)1500Vertical Stroke (mm)2260Traverse Stroke (mm)

View model details ↗

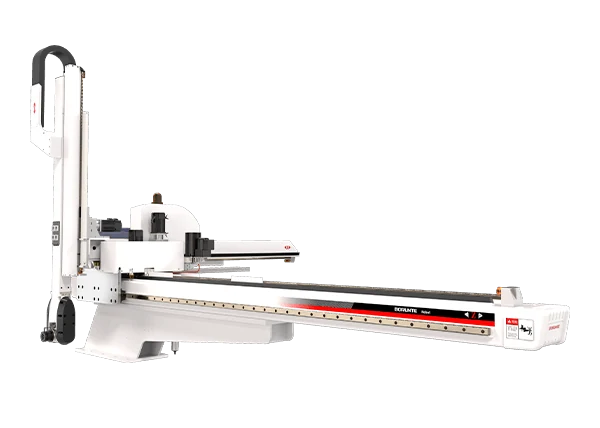

BRTN17WSS5PC robot

MODEL 14 / I.M.M. ROBOTS

BRTN17WSS5PC

BRTN17WSS5PC series applies to various types of 600T-1300T plastic injection molding machines, five-axis AC servo drive, with AC servo axis on the wrist. The rotation angle of the A-axis: 360° , and the rotation angle of the C-axis:180 ° , which can locate and adjust the angle of the fixture freely. Both of them have a long life, high accuracy, low failure rate, and simple maintenance. It is mainly used for quick injection or complex angle injection, especially suitable for long shape products such as automotive products, washing machines, and household appliances. Five-axis driver and controller integrated system: fewer signal lines, long-distance communication, good expansion performance, strong anti-interference ability, high accuracy of repeated positioning, can simultaneously control multiple axes, simple equipment maintenance, and low failure rate.

600T-1300TRecommended I.M.M (ton)1700Vertical Stroke (mm)2510Traverse Stroke (mm)

View model details ↗

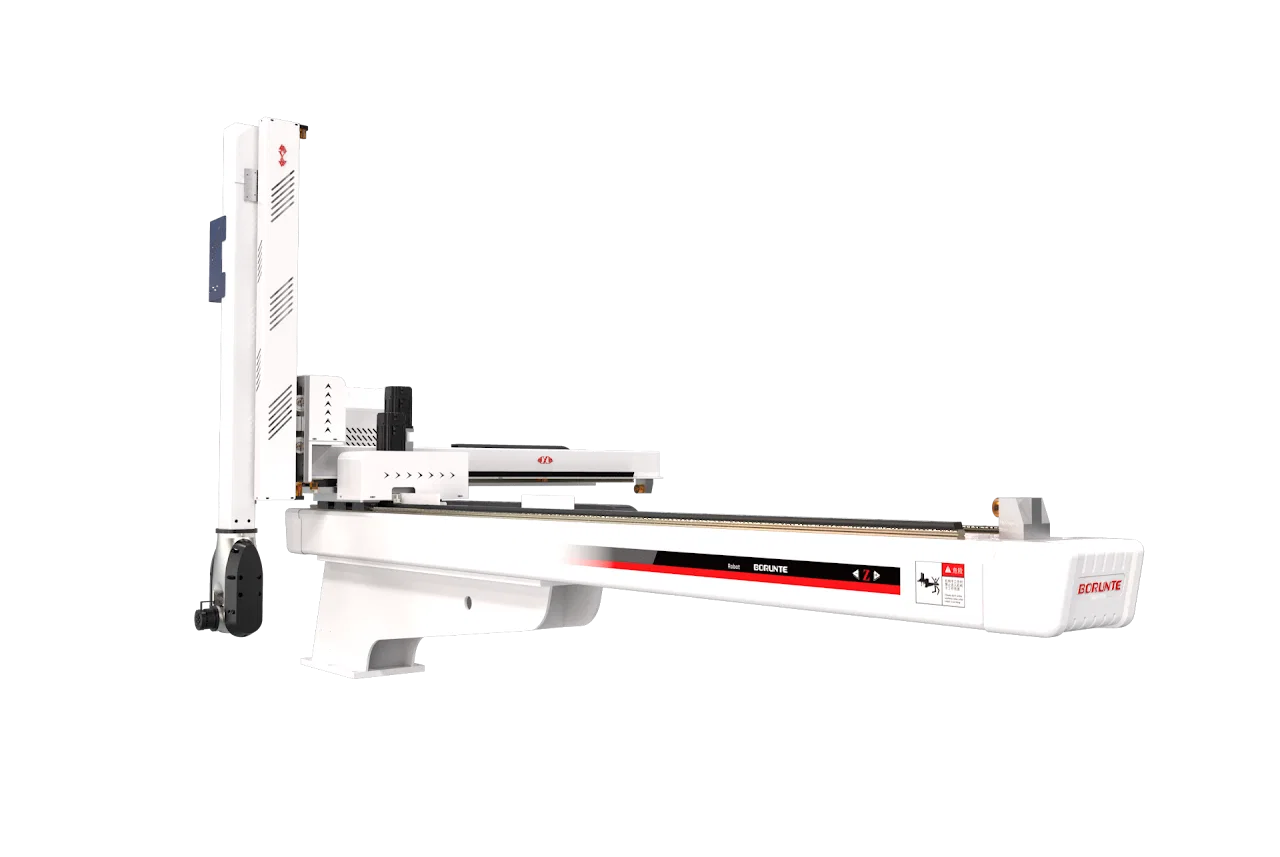

BRTNN15WSS5P robot

MODEL 15 / I.M.M. ROBOTS

BRTNN15WSS5P

BRTNN15WSS5P series is suitable for 470T-800T plastic injection molding machine, five-axis AC servo drive, standard AC servo drive shaft, the rotation angle of the A-axis:360° , and the rotation angle of the C-axis:180° , which can locate and adjust the fixture angle freely, it has a long life, high accuracy, low failure rate, simple maintenance, mainly for rapid removal or complex angle removal applications, especially long shaped products such as automotive products, washing machine.

470T-800TRecommended I.M.M (ton)1500Vertical Stroke (mm)2260Traverse Stroke (mm)

View model details ↗

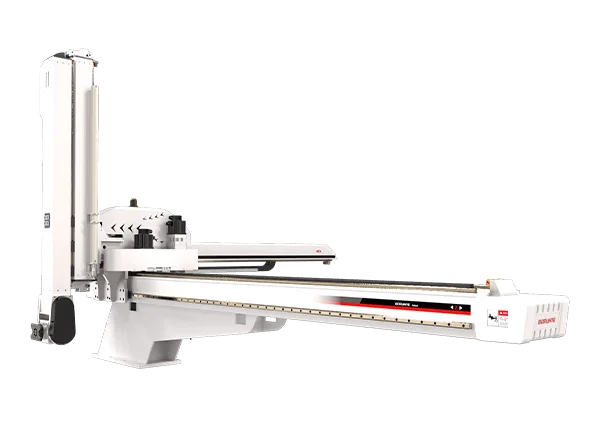

BRTN24WSS5PC robot

MODEL 16 / I.M.M. ROBOTS

BRTN24WSS5PC

BRTN24WSS5PC is suitable for all types of 1300T-2100T plastic injection molding machines, five-axis AC servo drive, with AC servo axis on the wrist, the rotation angle of the A-axis:360 °, and the rotation angle of the C-axis:180°. It can adjust fixtures freely, with long service life, high accuracy, low failure rate, and simple maintenance. It is mainly used for quick injection or complex angle injection. Especially suitable for long shape products such as automotive products, washing machines, and household appliances. Five-axis driver and controller integrated system: fewer signal lines, long-distance communication, good expansion performance, strong anti-interference ability, high accuracy of repeated positioning, can simultaneously control multiple axes, simple equipment maintenance, and low failure rate.

1300T-2100TRecommended I.M.M (ton)2400Vertical Stroke (mm)3200Traverse Stroke (mm)

View model details ↗

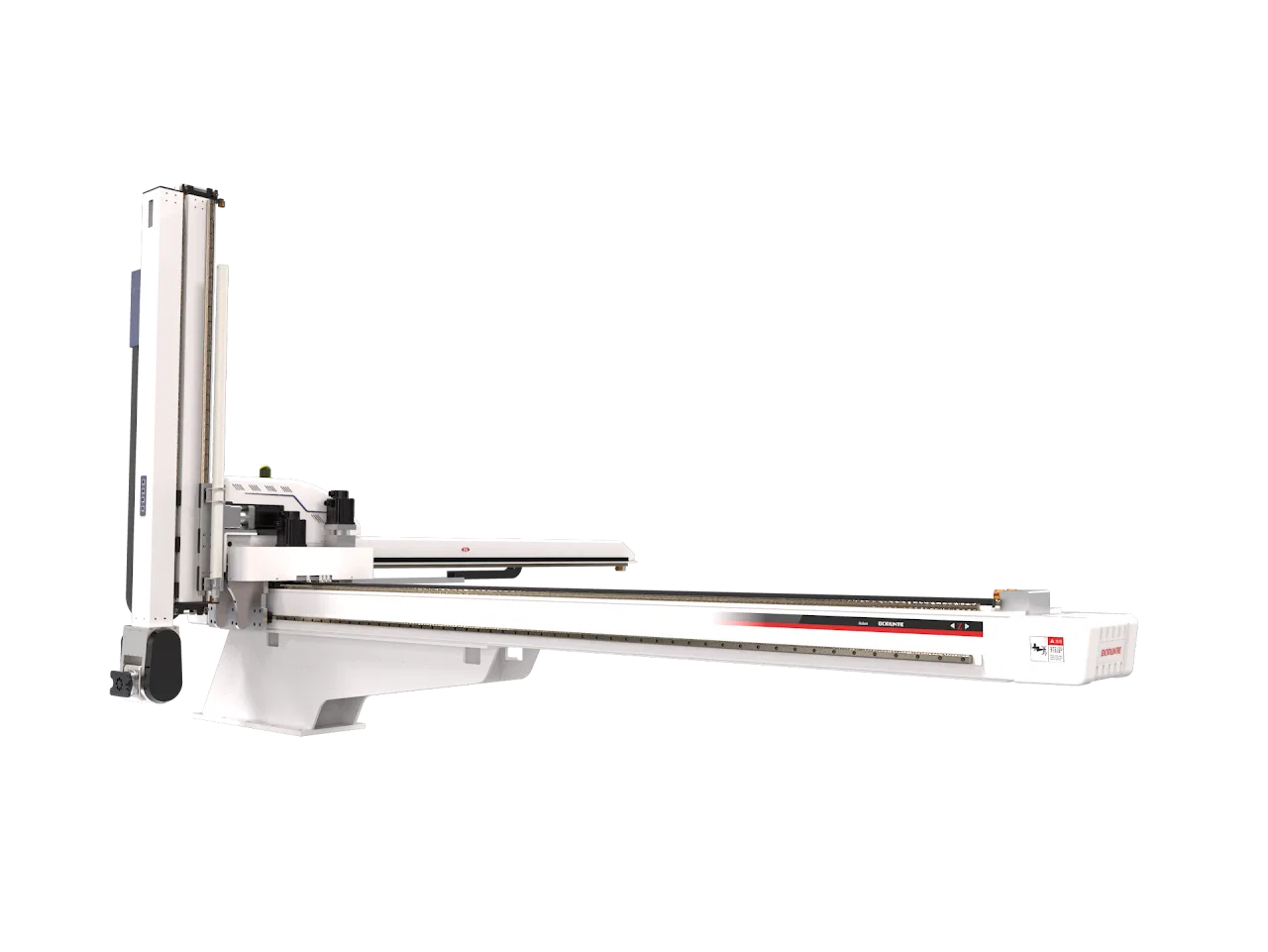

BRTN30WSS5PC robot

MODEL 17 / I.M.M. ROBOTS

BRTN30WSS5PC

BRTN30WSS5PC is suitable for all types of 2200T-4000T plastic injection molding machines, five-axis AC servo drive, with AC servo axis on the wrist, the rotation angle of the A-axis:360 °,and the rotation angle of the C-axis:180°. It can adjust fixtures freely, with long service life, high accuracy, low failure rate, and simple maintenance. It is mainly used for quick injection or complex angle injection. Especially suitable for long shape products such as automotive products, washing machines, and household appliances. Five-axis driver and controller integrated system: fewer signal lines, long-distance communication, good expansion performance, strong anti-interference ability, high accuracy of repeated positioning, can simultaneously control multiple axes, simple equipment maintenance, and low failure rate.

2200T-4000TRecommended I.M.M (ton)3000Vertical Stroke (mm)4000Traverse Stroke (mm)

View model details ↗

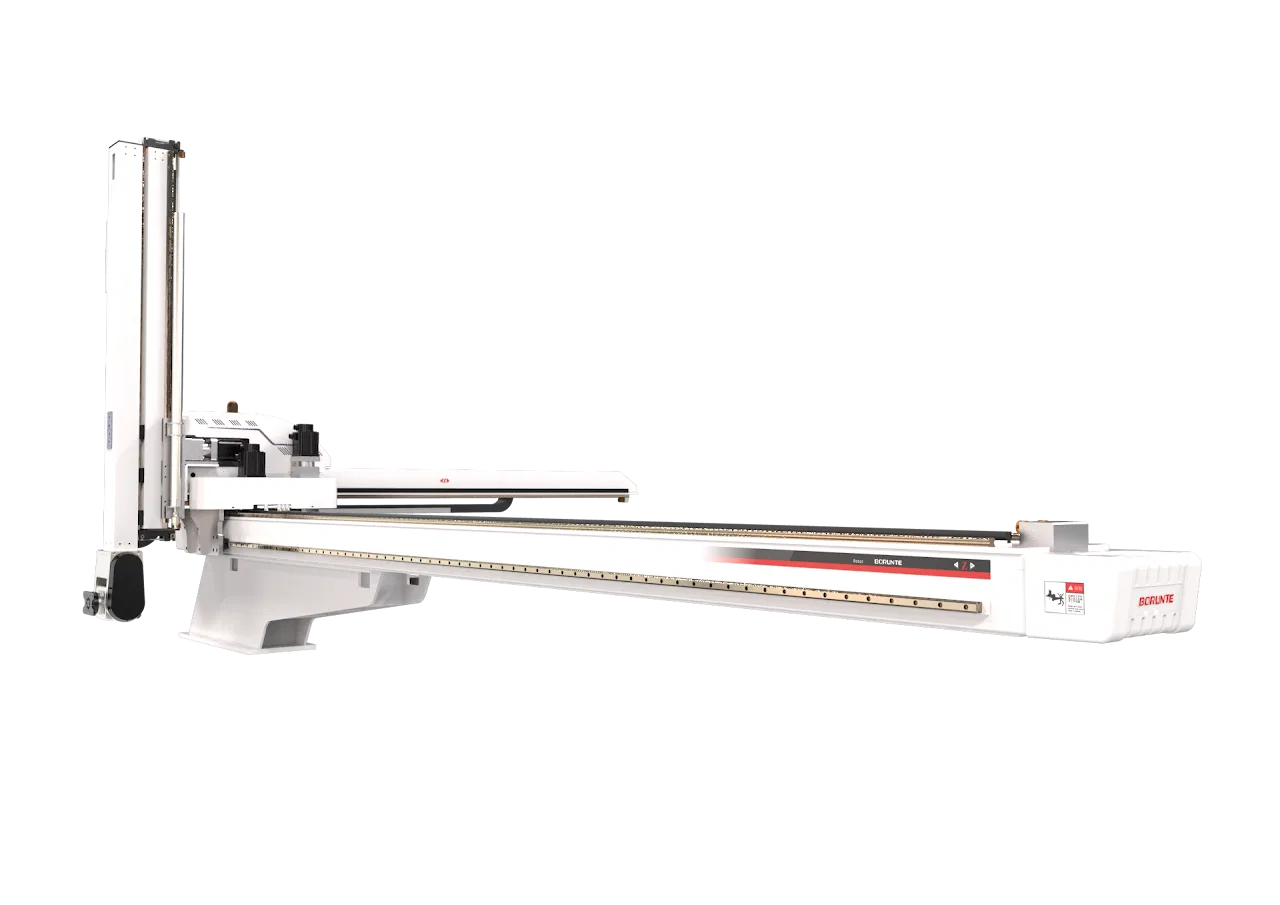

BRTN30WSS5PF robot

MODEL 18 / I.M.M. ROBOTS

BRTN30WSS5PF

BRTN30WSS5PF is a customized non-standard product based on the BRTN30WSS5PC, suitable for various types of plastic injection molding machines with capacities ranging from 2200T to 4000T. It features five-axis AC servo drives, with standard AC servo drive axes. The A-axis has a rotation angle of 360°, while the C-axis has a rotation angle of 180°, allowing for free positioning and adjustment of the fixture angle. It boasts a long lifespan, high precision, low failure rate, and simple maintenance. It is primarily used for rapid removal or complex-angle extraction applications, especially for long-shaped products such as automotive parts, washing machines, and home appliances. Five-axis drive and control integrated system: Few signal lines, long-distance communication, excellent scalability, strong anti-interference capability, high repeat positioning accuracy, capable of managing multiple axes simultaneously, simple equipment maintenance, and low failure rate.

2200T-4000TRecommended I.M.M (ton)3000≤Vertical Stroke (mm)6000≤Traverse Stroke (mm)

View model details ↗

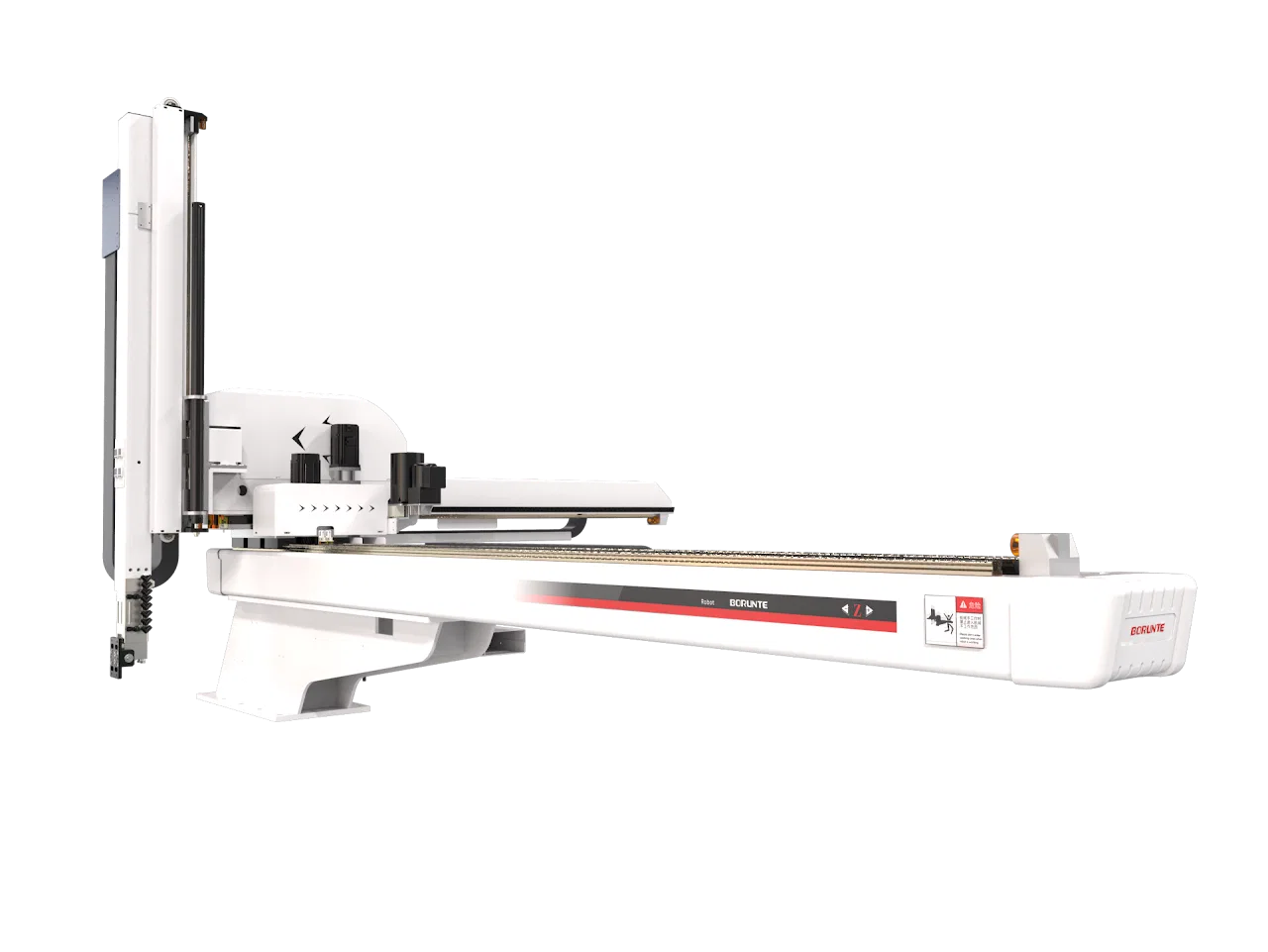

BRTN17WSS3PC robot

MODEL 19 / I.M.M. ROBOTS

BRTN17WSS3PC

BRTN17WSS3PC series is suitable for various types of plastic injection molding machines with capacities ranging from 600T to 1700T. Featuring a three-axis AC servo drive, it allows for free positioning and adjustment of the fixture angle, offering long service life, high precision, low failure rate, and simple maintenance. Primarily used for rapid ejection or complex-angle ejection, it is especially effective for long-shaped products such as automotive parts, washing machines, and household appliances. Three-axis integrated drive and control system: Few signal lines, long-distance communication, excellent scalability, strong anti-interference capability, high repeatability positioning accuracy, simple equipment maintenance, and low failure rate.

600T-1700TRecommended I.M.M (ton)1700Vertical Stroke (mm)2510Traverse Stroke (mm)

View model details ↗

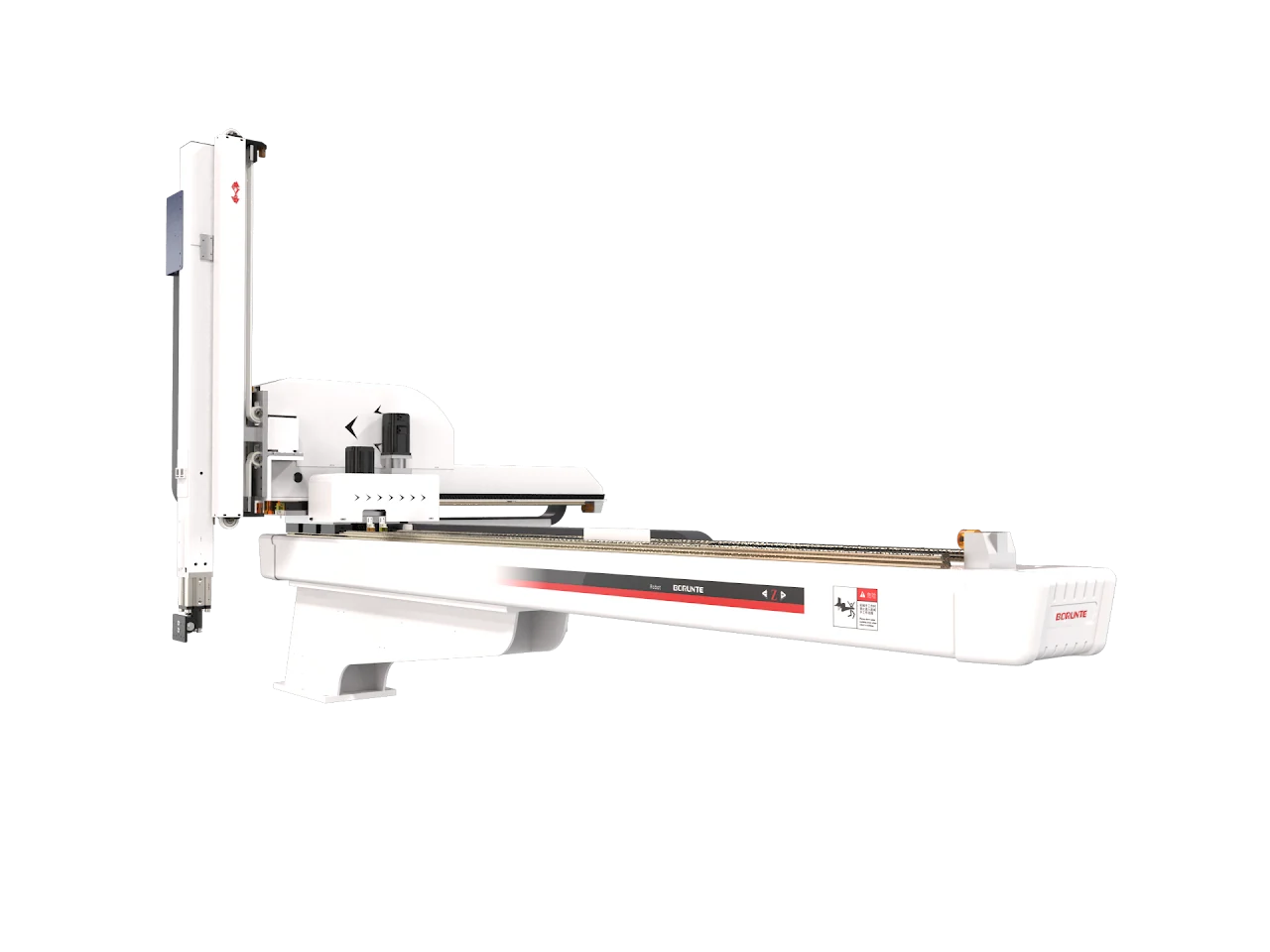

BRTNN15WSS3P robot

MODEL 20 / I.M.M. ROBOTS

BRTNN15WSS3P

BRTNN15WSS3P series is suitable for various plastic injection molding machines with capacities ranging from 470 to 800T. It features three-axis AC servo drives, allowing free positioning and adjustment of the fixture angle. With long lifespan, high precision, low failure rate, and simple maintenance, it is primarily used for rapid extraction or complex-angle extraction, particularly for long-shaped products such as automotive parts, washing machines, and household appliances. Three-axis integrated drive and control system: features fewer signal lines, long-distance communication, excellent expandability, strong anti-interference capability, high repeat positioning accuracy, simple equipment maintenance, and low failure rate.

470T-800TRecommended I.M.M (ton)1500Vertical Stroke (mm)2260Traverse Stroke (mm)

View model details ↗

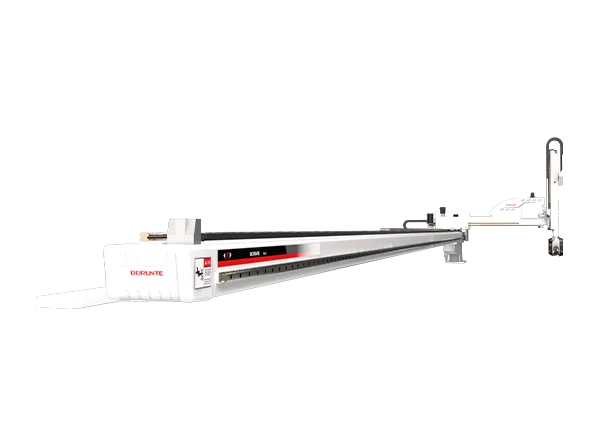

BRTV17WSS5PC robot

MODEL 21 / I.M.M. ROBOTS

BRTV17WSS5PC

BRTV17WSS5PC series applies to all types of horizontal injection machine ranges of 600T-1300T for take-out products and sprue. The installation is different from traditional beam robots, products are placed at the end of injection molding machines, which can save installation space for the ejection machine. Arm form: telescopic type and single arm, five axis AC servo drive, with AC servo drive axis, A axis rotation angle of 360°, C axis rotation angle of 180°, can freely position and adjust fixture angle, long service life, high accuracy, low failure rate, simple maintenance, mainly used for quick removal or complex angle removal applications, especially for long shaped products such as automotive products, washing machines and household appliances. Five-axis driver and controller integrated system: fewer signal lines, long-distance communication, good expansion performance, strong anti-interference ability, high accuracy of repeated positioning, can simultaneously control multiple axes, simple equipment maintenance, and low failure rate.

600T-1300TRecommended I.M.M (ton)1700Vertical Stroke (mm)Horizontal arch with a total length of less than 12 metersTraverse Stroke (mm)

View model details ↗

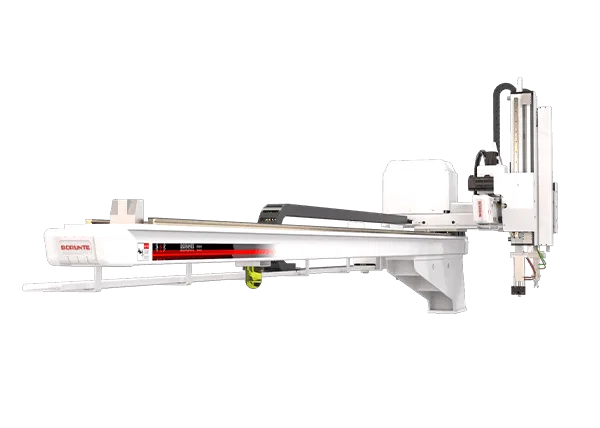

BRTV09WDS5P0 robot

MODEL 22 / I.M.M. ROBOTS

BRTV09WDS5P0

BRTV09WDS5P0 series applies to all types of horizontal injection machine ranges of 120T-320T for take-out products and sprue. The installation is different from traditional beam robots, products are placed at the end of injection molding machines. It has a double arm. The vertical arm is a telescopic stage and the vertical stroke is 900mm. Five-axis AC servo drive. After installation, the installation space of the ejector can be saved by 30-40%, and the plant can be used more fully allowing better utilization of production space, productivity will be increased by 20-30%, reduce the defective rate, ensure the safety of operators, reduce manpower and accurately control the output to reduce waste. Five-axis driver and controller integrated system: fewer signal lines, long-distance communication, good expansion performance, strong anti-interference ability, high accuracy of repeated positioning, can simultaneously control multiple axes, simple equipment maintenance, and low failure rate.

120T-320TRecommended I.M.M (ton)900Vertical Stroke (mm)Horizontal arch with a total length of less than 6 metersTraverse Stroke (mm)

View model details ↗

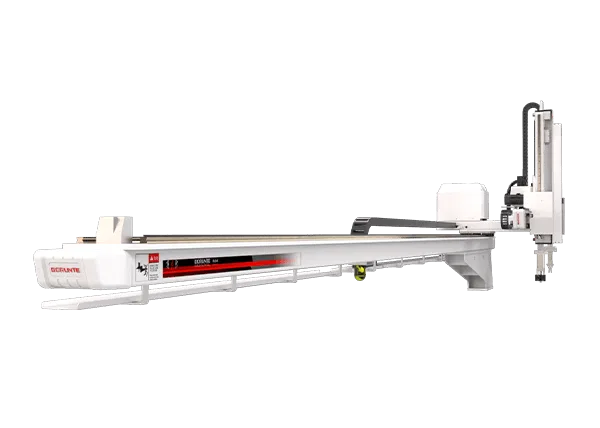

BRTV13WDS5P0 robot

MODEL 23 / I.M.M. ROBOTS

BRTV13WDS5P0

BRTV13WDS5P0 series applies to all types of horizontal injection machine ranges of 320T-700T for take-out products and sprue. The installation is different from traditional beam robots, products are placed at the end of injection molding machines. It has a double arm. The vertical arm is a telescopic stage and the vertical stroke is 1300mm. Five-axis AC servo drive. After installation, the installation space of the ejector can be saved by 30-40%, and the plant can be used more fully allowing better utilization of production space, productivity will be increased by 20-30%, reduce the defective rate, ensure the safety of operators, reduce manpower and accurately control the output to reduce waste. Five-axis driver and controller integrated system: fewer signal lines, long-distance communication, good expansion performance, strong anti-interference ability, high accuracy of repeated positioning, can simultaneously control multiple axes, simple equipment maintenance, and low failure rate.

320T-700TRecommended I.M.M (ton)1300Vertical Stroke (mm)Horizontal arch with a total length of less than 6 metersTraverse Stroke (mm)

View model details ↗

APPLICATION PLANNING

Planning injection moulding automation

Start with the moulding machine, mould opening, part and sprue dimensions, extraction direction and cycle time. Explain whether parts need an insert, a conveyor transfer or downstream inspection. The robot, end-of-arm tooling and machine interface should be specified together. Explore robotic integration or review the robot catalogue before sending your requirements.
