MCB (Miniature Circuit Breaker) Automatic Assembly Line
Machine information, applications and product visuals.
01MACHINE PROFILE

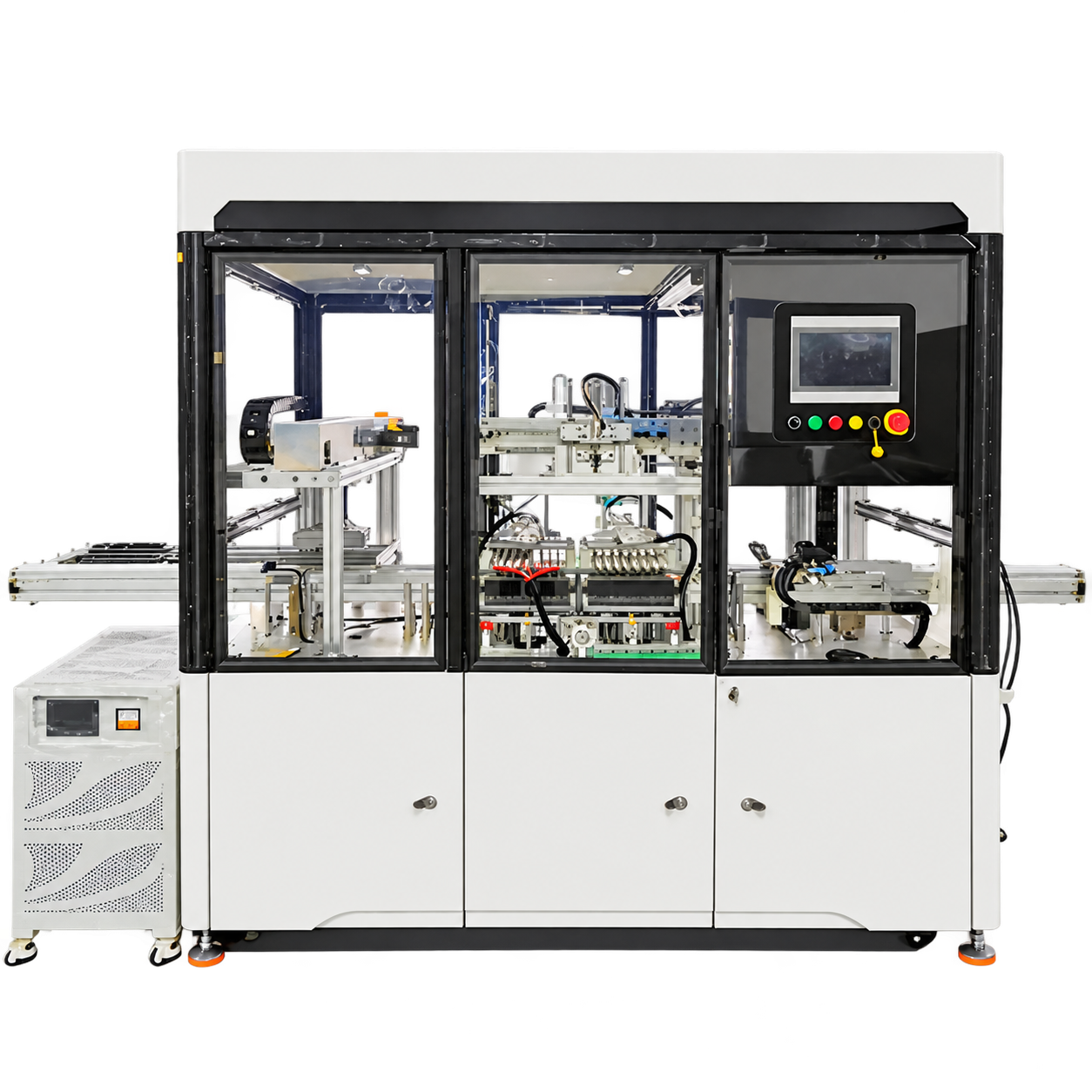

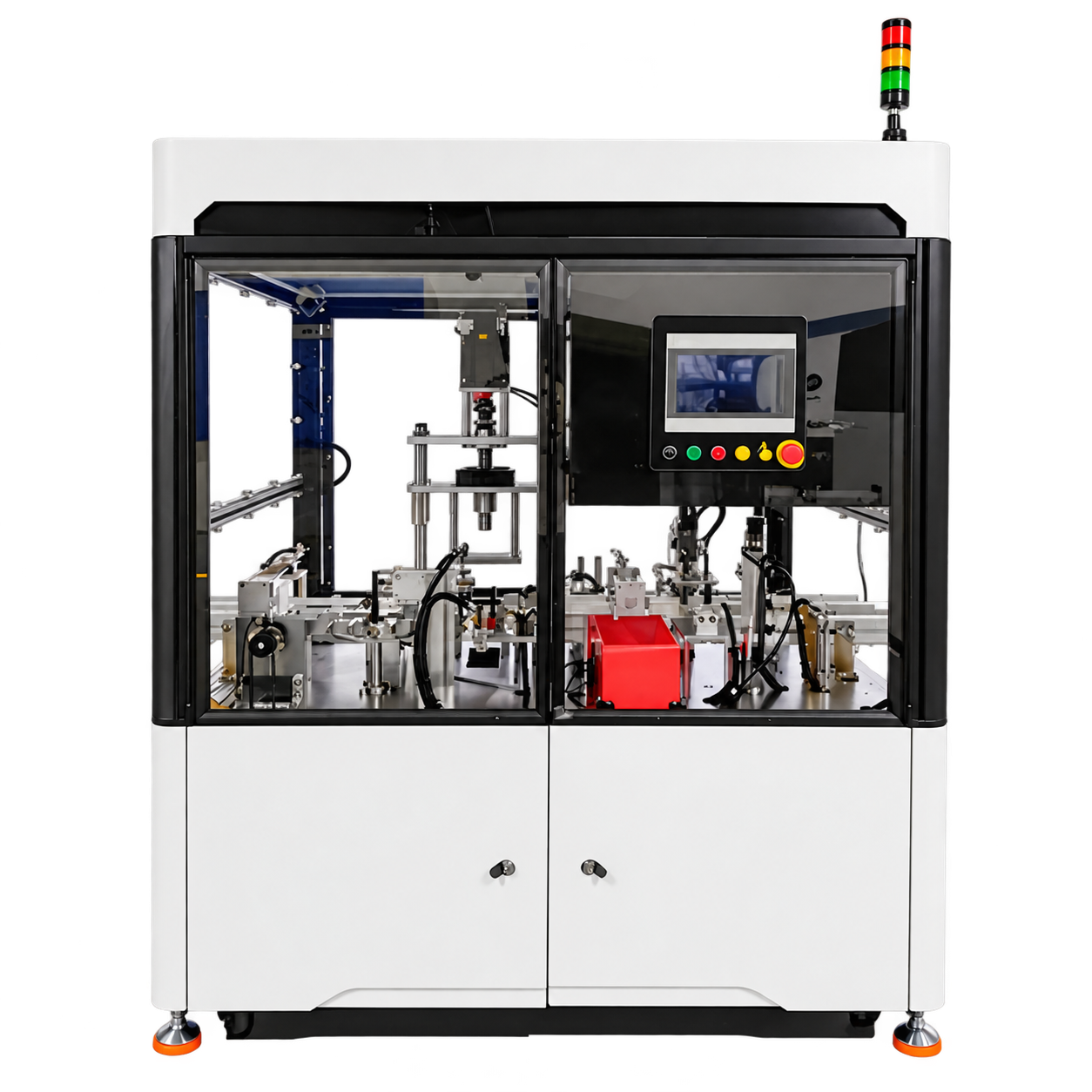

MCB (Miniature Circuit Breaker) Automatic Assembly Line
Output: 1800-2000 poles/hour
Assembly and process stages
- Laser marking QR code
- Scanning QR code
- Rivet insertion and riveting
- Thermal Calibration
- Cooling station
- Thermal Verification
- HV and MV test
- Terminal Screw torque test.
- Terminal screw loosening and tightening test
- Calibration screws locking with glue dispensing.
- Calibration screw locking by twisting from side.
- Buckle assembly.
- Laser marking Front with logo and Side marking.
- Visual inspection all six side of MCB
- Provision for Multipole rivet insertion and Riveting
- Arc chute detection.
- Automatic detection and segregation of defective products at each station and for each defect separately.
- Packing primary box.
- Packing Outer box.
- Palletizing
- MES
- LabView Programming NI Platform
- Industrial computer each station.
